MSI made a Raspberry Pi-like PC with Intel x86 processors

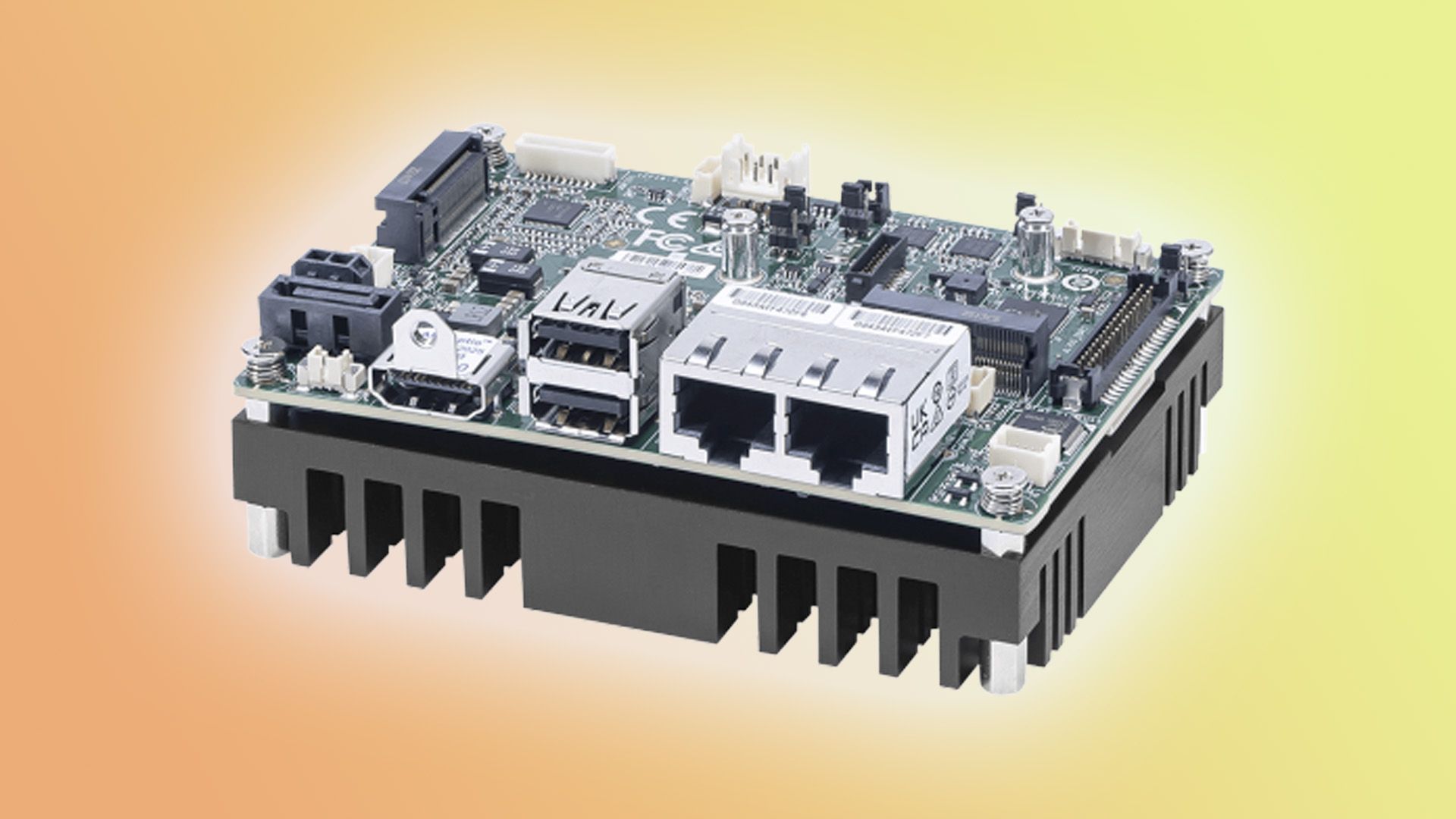

MSI has released a new single-board computer powered by Intel’s Alder Lake, Amston Lake, or Twin Lake x86 processors. Designed in a compact Pico-ITX form factor, the MS-CF16 V3.0 measures just 101 x 73 millimeters (roughly 4 x 2.9 inches) and weighs only 300 grams (0.6 pounds), making it similar in size to a standard Raspberry Pi board. This board targets “deployment in extreme environments and industrial use cases,” offering robust performance in a small package.

### Compact Design with Rich Connectivity

Despite its tiny footprint, the MS-CF16 V3.0 boasts a versatile set of connectivity options. It includes:

– Two USB 3.2 Type-A ports
– Two USB 2.0 ports
– Two Ethernet LAN connectors (2.5 Gb and 1 Gb)
– An M.2 B Key slot for storage or cellular modules
– An M.2 E Key slot for Wi-Fi or Bluetooth cards
– SATA 3.0 support

For video output, the board can simultaneously drive up to two displays using the HDMI port combined with either the LVDS or embedded DisplayPort interface.

### Built for Harsh Environments

One of the standout features of the MS-CF16 V3.0 is its rugged design. It operates reliably in harsh conditions ranging from -40°C (-40°F) to 70°C (158°F), all while relying on passive cooling with no fans. This makes it well-suited for industrial settings where durability and stability are critical.

### Processor Options

MSI offers three Intel processor choices for this board:

– **Intel Atom X7433RE**: 4 cores, up to 3.4 GHz max clock speed, 9W TDP
– **Intel Processor N97**: 4 cores, up to 3.6 GHz max turbo frequency, 12W TDP
– **Intel Processor N150**: 4 cores, 6W TDP, up to 3.6 GHz max turbo frequency (commonly found in mini PCs and entry-level Windows laptops)

### Availability and Use Cases

The MS-CF16 V3.0 is not available through typical retail channels. Instead, it is aimed exclusively at embedded hardware applications for companies and organizations. Targeted industries include factory automation, smart kiosks, transportation systems, and edge computing devices.

While it is not currently listed with US distributors, the board is available through authorized sellers in Canada, Germany, and other regions.

In a press release, MSI stated:
*”With its compact size, wide temperature tolerance, and rich feature set, the MS-CF16 V3.0 is designed to meet the diverse needs of embedded system developers, industrial OEMs, and system integrators. Whether used in smart manufacturing, medical equipment, digital signage, or transportation infrastructure, this board delivers performance, stability, and expandability in a small form factor.”*

### Alternative Options for US Buyers

If you are based in the United States and looking for a compact x86-based PC, you might consider alternatives like the GMKtec NucBox G5 or fanless MeLE Mini PC. Unlike the Raspberry Pi, these devices support standard Microsoft Windows versions and a wide range of other x86-compatible operating systems, providing greater versatility for general computing needs.

—

The MSI MS-CF16 V3.0 bridges the gap between industrial robustness and compact design, offering a specialized solution for embedded systems operating in extreme environments. While it may not be suited for everyday consumer use, it opens new possibilities in industrial and embedded applications.
